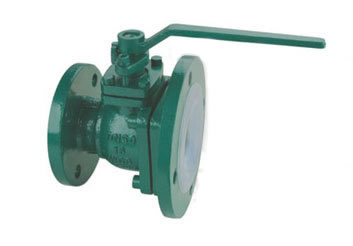

| 襯氟放料閥 |
標準參數
| 公稱通徑 |
主要尺寸 |
參考數值 |
| PN1.0MPa |
| DN(mm) |
L |
D |
D1 |
D2 |
f |
b |
Z-d |
Do |
H |
| 25/50 |
125 |
115/140 |
85/110 |
65/90 |
3/3 |
17/17 |
4-14/4-14 |
180 |
105 |
| 32/65 |
135 |
140/160 |
100/130 |
78/110 |
3/3 |
19/17 |
4-18/4-14 |
180 |
120 |
| 40/65 |
150 |
150/160 |
110/130 |
85/110 |
3/3 |
19/17 |
4-18/4-14 |
225 |
140 |
| 40/80 |
150 |
150/190 |
110/150 |
85/125 |
3/3 |
19/19 |
4-18/4-18 |
225 |
140 |
| 50/80 |
165 |
165/190 |
125/150 |
100/125 |
3/3 |
21/19 |
4-18/4-18 |
225 |
150 |
| 50/100 |
165 |
165/210 |
125/170 |
100/145 |
3/3 |
21/19 |
4-18/4-18 |
225 |
150 |
| 65/100 |
180 |
185/210 |
145/170 |
120/145 |
3/3 |
21/19 |
4-18/4-18 |
360 |
160 |
| 65/125 |
180 |
185/240 |
145/200 |
120/175 |
3/3 |
21/20 |
4-18/4-18 |
360 |
160 |
| 80/125 |
240 |
200/240 |
160/200 |
135/175 |
3/4 |
21/20 |
8-18/8-18 |
420 |
215 |
| 80/150 |
240 |
200/265 |
160/250 |
135/200 |
3/4 |
21/22 |
8-18/8-18 |
420 |
215 |
| 100/150 |
260 |
220/265 |
180/225 |
155/200 |
3/4 |
23/22 |
8-18/8-18 |
420 |
240 |
| 100/200 |
260 |
220/320 |
180/280 |
155/255 |
3/4 |
23/24 |
8-18/8-18 |
420 |
240 |
| 如需其它尺寸與標準，請電話聯系我公司 | |
|
|
|
